Barriers and enablers to implementing and using clinical decision support systems for chronic diseases: a qualitative systematic review and meta-aggregation

Implementation Science Communications volume 3, Article number: 81 (2022) Cite this article

Abstract

Background

Clinical decision support (CDS) is increasingly used to facilitate chronic disease care. Despite increased availability of electronic health records and the ongoing development of new CDS technologies, uptake of CDS into routine clinical settings is inconsistent. This qualitative systematic review seeks to synthesise healthcare provider experiences of CDS—exploring the barriers and enablers to implementing, using, evaluating, and sustaining chronic disease CDS systems.

Methods

A search was conducted in Medline, CINAHL, APA PsychInfo, EconLit, and Web of Science from 2011 to 2021. Primary research studies incorporating qualitative findings were included if they targeted healthcare providers and studied a relevant chronic disease CDS intervention. Relevant CDS interventions were electronic health record-based and addressed one or more of the following chronic diseases: cardiovascular disease, diabetes, chronic kidney disease, hypertension, and hypercholesterolaemia. Qualitative findings were synthesised using a meta-aggregative approach.

Results

Thirty-three primary research articles were included in this qualitative systematic review. Meta-aggregation of qualitative data revealed 177 findings and 29 categories, which were aggregated into 8 synthesised findings. The synthesised findings related to clinical context, user, external context, and technical factors affecting CDS uptake. Key barriers to uptake included CDS systems that were simplistic, had limited clinical applicability in multimorbidity, and integrated poorly into existing workflows. Enablers to successful CDS interventions included perceived usefulness in providing relevant clinical knowledge and structured chronic disease care; user confidence gained through training and post training follow-up; external contexts comprised of strong clinical champions, allocated personnel, and technical support; and CDS technical features that are both highly functional, and attractive.

Conclusion

This systematic review explored healthcare provider experiences, focussing on barriers and enablers to CDS use for chronic diseases. The results provide an evidence-base for designing, implementing, and sustaining future CDS systems. Based on the findings from this review, we highlight actionable steps for practice and future research.

Trial registration

PROSPERO CRD42020203716

Peer Review reports

Background

Introduction

Clinical decision support (CDS) refers to a wide range of tools that present clinical or patient-related information, “intelligently filtered or presented at appropriate times” to enhance healthcare processes and patient outcomes [1]. Modern computerised CDS systems are data-driven and utilise individual patient data from existing electronic health records (EHRs) [2]. EHR data is extracted and processed via algorithms, and decision support outputs are displayed to users within EHRs themselves or in standalone web-based applications. Provider-facing CDS functions include tools for clinical documentation, data presentation, order or prescription creation, protocol or pathway support, reference guidance, and alerts or reminder [3, 4]—typically, CDS systems incorporate one or more of these functions.

As early as 1998, decision support was identified as a fundamental area of high-quality chronic disease management within the Chronic Care Model [5]. The current COVID-19 pandemic has accelerated the need for virtual models of care in addition to traditional face-to-face chronic disease care [6]; improving chronic disease care through technology-enabled care models is also a goal of the current Australian national digital health strategy [7]. EHR-based CDS is a digital health intervention that can facilitate the whole spectrum of chronic disease care from screening and diagnosis; to management and optimisation of care pathways; to ongoing individual and population-level disease monitoring.

CDS has the potential to improve health process outcomes, such as adherence to recommended preventative care measures [8,9,10,11,12]. However, meta-analyses of CDS intervention studies show substantial heterogeneity in effect sizes [8,9,10]. Furthermore, widespread adoption of CDS systems has not been achieved [13], and access to CDS does not guarantee user uptake or acceptance in clinical settings [14,15,16]. For example, a review of 23 studies examining medication CDS systems found that between 46 and 96% of medication alerts were overridden by clinicians [15]. Other studies have found that an overload of CDS alerts can even contribute to burnout amongst time-poor clinicians [17]. Why do some CDS implementations succeed, whereas others fall short of expectations [18]? Inconsistent CDS uptake stems from technical issues during development, and contextual challenges to implementing the technology [19, 20]. From a technical perspective, CDS development requires complex clinical logic to be converted into computer-executable algorithms, necessitating skills in both medicine and informatics [13]. From an implementation perspective, CDS interventions commonly encounter user and organisational barriers.

Despite a sizeable volume of perspective pieces on why CDS undertakings succeed or fail, there remains few contemporary qualitative systematic reviews on the topic. Several systematic reviews have investigated CDS uptake using a quantitative approach, reporting user satisfaction scores, or reporting meta-regression results to identify factors statistically associated with positive CDS outcomes [8, 9, 21, 22]. Other reviews investigate CDS uptake by summarising the experience of healthcare providers—through narrative or thematic meta-synthesis of primary qualitative research findings [18, 23,24,25,26,27,28]. Two of these qualitative systematic reviews summarised early primary research studies in the field from the 1990s and 2000s [18, 25]. More recent reviews have been conducted to investigate barriers and enablers to CDS uptake, but have predominantly focussed on a single type of CDS—for example, CDS that is medication-related [24, 25], or CDS systems that are alert-based [26]. One 2015 study by Miller et al uses a comprehensive definition of computerised CDS—however, the authors only selected 9 of 56 eligible qualitative studies for inclusion in the final synthesis, as studies of limited methodological quality were excluded from the qualitative synthesis [23].

Building on previous studies, we sought to conduct a systematic review of barriers and enablers affecting EHR-based CDS adoption for chronic disease care. Barriers and enablers are determinants of practice that prevent or enable knowledge translation [29, 30]. A barrier adequately addressed becomes a facilitator for health intervention implementation. A synthesis of barriers and enablers across multiple studies can bring valuable perspectives not found within an individual study. A myriad of qualitative synthesis methods have been developed, each with its own epistemological stance and stated purpose [31, 32]. Broadly speaking, qualitative synthesis methods lie on a continuum between primarily aggregative to primarily interpretive approaches [31, 33]. Aggregative approaches such as meta-aggregation seeks to pool findings across studies, mirroring the meta-analysis process used in quantitative studies. In contrast, interpretative approaches such as meta-ethnography are grounded in social science research traditions and seek to re-interpret primary research findings to develop theories and frameworks [34, 35]. We use a JBI (formerly Joanna Briggs Institute) meta-aggregation approach for synthesising qualitative evidence for two main reasons—firstly, aggregative rather than interpretive synthesis methods is most appropriate for qualitative data in the CDS field, with its limited availability of contextually “thick” and conceptually “rich” qualitative findings [36, 37]; secondly, meta-aggregation best aligns with our review objective of identifying actionable steps at a practice level. A preliminary search of PROSPERO, Cochrane Database of Systematic Reviews, JBI database and Medline did not reveal published or studies in progress that conducted a similar scope of work.

Objectives

This qualitative systematic review aims to describe healthcare provider experiences of implementing, using, evaluating, and sustaining EHR-based CDS interventions for chronic disease care. Barriers and enablers of providers will be described from the perspectives of individual clinicians, and healthcare services.

Methods

The systematic review is registered on PROSPERO (CRD42020203716). The overall approach to this CDS review was a mixed method review incorporating qualitative, effectiveness, and economic evaluation components. Only the qualitative component of the systematic review is reported in this paper, and the effectiveness and economic reviews will be reported separately. Methods for the qualitative systematic review are informed by JBI methodology for systematic reviews of qualitative evidence, and JBI methodology for text and opinion [38]. The review was reported according to Preferred Reporting Items for Systematic reviews and Meta-Analyses (PRISMA) guidelines—see Additional file 1.

Searches

Databases searches included PubMed (Medline), EBSCOHOST (CINAHL, APA PsychInfo, EconLit), and Web of Science. MeSH terms and title/abstract search terms included synonyms of “clinical decision support systems,” “cardiovascular disease,” “diabetes,” “chronic kidney disease,” “hypertension,” and “hypercholesterolaemia.” The full search strategy for PubMed (Medline) is outlined in Additional file 2. Studies were restricted to English language studies from January 2011 to January 2021. Studies prior to 2011 have been adequate covered by previous reviews [8, 18, 25] and our review targeted contemporary EHR-based CDS system implementations—hence, we restricted the search to studies published within the past decade.

Study inclusion and exclusion criteria

Population

Our population of interest was individual clinician (e.g. doctors, nurses, pharmacists) or other health service staff (e.g. clinic managers) using EHR CDS systems as a point-of-care tool for patients with one or more of five chronic diseases. Even though CDS can be both provider-facing and patient-facing, we focussed on provider perspectives since providers are the main implementers and users of CDS systems. The five related chronic diseases were chronic kidney disease, cardiovascular disease, diabetes, hypertension, and hypercholesterolaemia. CDS targeting the whole spectrum of chronic disease care was considered—including but not limited to CDS used for screening and diagnosis, pathway support, pharmacological management, and non-pharmacological management of chronic diseases. Basic EHR-based CDS functions with limited scope—such as single medication CDS (e.g. warfarin dosing) and simple recall alerts—were excluded from this study.

Phenomena of interest and context

The phenomena of interest were healthcare provider experiences of chronic disease CDS systems, focussing on barriers and enablers to implementing, using, evaluating, and sustaining CDS interventions. We sought to understand “real-world” provider experiences and therefore, CDS prototypes not used in clinical settings were excluded from the study. The contexts of interest were non-acute settings delivering chronic disease care, which included primary care, specialist outpatient, and community healthcare services. CDS systems used in emergency or other acute settings only, such as CDS for inpatient management of blood glucose levels, were excluded from this study; this is because optimal healthcare processes to address chronic diseases are inherently different from that of acute hospital services [5, 39]. See Additional file 3 for a detailed inclusion and exclusion criteria.

Other eligibility criteria

Primary research studies with CDS systems implemented for clinical use were included—thus, CDS research protocols and articles describing methods of CDS development without real-world implementation were excluded. Secondary research such as perspective pieces and systematic reviews were excluded. Study designs considered included qualitative studies and other evaluation studies with a qualitative inquiry component—these included studies conducting interviews, surveys, focus group discussions, and mixed methods studies. For the purposes of this review, “qualitative studies” referred to studies with an explicit qualitative methodological approach (e.g. phenomenology). “Other evaluation studies” refers to studies incorporating a qualitative inquiry component (e.g. user feedback study) but without an explicit qualitative methodological approach. We include both types of studies in our review, recognising that evidence from both formal qualitative studies and “other evaluation studies” with qualitative findings can enrich a synthesis [37].

Study selection

Identified citations were uploaded into Covidence software (Veritas Health Innovation, Melbourne, Victoria, Australia) [40] for screening and article selection. Title and abstracts were screened independently by two independent reviewers (WC, and BB or PC). Conflicts were resolved by reaching a consensus between the two reviewers, and where this was not possible, conflicts were resolved by a third team member. Full text screening was conducted, and studies were classified into qualitative, effectiveness, or economic categories by one reviewer (WC). Reasons for exclusion at full text stage were recorded. Citations for inclusion were imported into the JBI System for the Unified Management, Assessment and Review of Information (JBI SUMARI) software (JBI, Adelaide, Australia) [41] for critical appraisal and data extraction.

Study quality assessment

Critical appraisal of methodology quality was conducted using the JBI Critical Appraisal Checklist for Qualitative Research 2017 [38] by two reviewers (WC and CO). A random 25% sample of included studies had methodology quality assessed by both reviewers independently and disagreements were resolved through consensus. This review took an inclusive approach to incorporate a broad range of healthcare provider experiences—therefore, study quality assessment was conducted but studies were not excluded from data extraction or synthesis based on methodological quality scoring.

Data extraction and synthesis

We based our qualitative data extraction and synthesis on the JBI meta-aggregation approach [38]. Meta-aggregation is philosophically grounded in pragmatism and transcendental phenomenology [31]. Pragmatism roots are reflected in an emphasis to identify “lines of action” for policy and practice, which contrasts with other synthesis methods (e.g. meta-ethnography) that have a focus on mid-level theory generation [42]. The influence of transcendental phenomenology is seen in meta-aggregation bracketing, where findings are extracted as given without re-analysis or re-interpretation based on prior concepts regarding the phenomena of interest [43]—through bracketing, meta-aggregation seeks to aggregate primary study findings in a way that represents the original authors’ intended means, with minimal influence from the reviewer [43, 44]. The qualitative meta-aggregation process generates a hierarchy of findings, categories, and synthesised statements—pictorially represented in Fig. 1. In meta-aggregation, level 1 findings are extracted findings (e.g. themes) reported verbatim from primary research authors, which are backed with supportive illustrations (e.g. interview excerpts). Level 2 findings are reviewer-defined categories, which group two or more level 1 findings based on similarities in meaning. Level 3 findings are synthesised statements, which represent the collective meaning of categories and provide recommendations for practice [38, 44].

Fig. 1
figure 1

Meta-aggregation and hierarchy of findings

Full size image

For data extraction, two reviewers extracted study characteristics and qualitative findings from included studies using JBI SUMARI software (WC and CO) [41], according to a modified JBI meta-aggregation approach [38]. Study characteristics were extracted using the standardised JBI SUMARI tool and included method of data collection and analysis, study setting, phenomena of interest, and participant characteristics. Findings referred to verbatim extracts of the author’s interpretation of qualitative or mixed methods results; illustrations were direct quotations or other supporting data from the primary study (e.g. interviews, surveys). In addition to primary qualitative research findings, verbatim author text and opinion describing primary quantitative research data (e.g. survey data) were also extracted for synthesis. A level of credibility from unequivocal (U), credible (C) to not supported (N) was assigned to each finding. Qualitative findings were pooled—only unequivocal (U) and credible (C) findings were grouped into categories, which were meta-aggregated into synthesised findings. Not supported (N) findings are presented separately.

Results

Included studies

Abstract and title screening was conducted for 7999 citations. Articles were excluded at this stage (n = 7374) mainly due to an absence of a chronic disease CDS mentioned in the abstract and title. Full text review was conducted for 625 articles. Reasons for exclusion were as follows: 377 based on article type (e.g. protocol, non-primary research articles) and 148 based on article content. The most common reasons for exclusion based on article content were that the CDS did not have an EHR component (n = 65) or that the EHR did not have a CDS component (n = 29). Thirty-three studies met the inclusion criteria for the qualitative outcome component of this systematic review, of which 13 were qualitative studies and 20 were other evaluation studies with qualitative findings. All 33 studies were included for data extraction and qualitative evidence synthesis (meta-aggregation). See also Fig. 2 for PRISMA flow diagram [45]. Effectiveness and economic evaluation components of the systematic review will be reported separately.

Fig. 2
figure 2

PRISMA flow diagram. Abbreviations: CDS—Clinical decision support; EHR—Electronic health record. *Articles may include one or more outcomes. Bold: Only articles with qualitative outcomes were included in this manuscript, studies with effectiveness or economic outcomes are reported separately

Full size image

Study quality assessment

Overall methodological quality was moderate for the 13 qualitative studies—main issues identified during quality assessment related to limited descriptions of methodological approach (JBI Checklist for Qualitative Research Q1 and Q2) and limited description of researcher context (Q6 and Q7). For the 20 other evaluation studies with qualitative findings, Q1 to Q7 were considered not applicable. The main issue identified in other evaluation studies was that few (n = 6) had evidence of ethics approval. See Additional file 4 for methodological quality of included studies.

Characteristics of included studies

The highest number of studies were conducted in USA (n = 13), Australia (n = 7), and India (n = 3) (Fig. 3). Year of publication ranged from 2011 to 2020, with the highest number of articles (48%) published in 2018 and 2019. The most common disease focus of the CDS systems were cardiovascular risk factors (n = 13), followed by diabetes (n = 5), hypertension (n = 4), and multiple medications (n = 4) (Fig. 4). The majority of studies were conducted in primary care (n = 27)—which referred to general practices, community health clinics, and primary care practices. The remaining studies were conducted in specialist outpatients (n = 3) and multiple settings (n = 3). A range of CDS types were included: from screening and diagnosis, to pathway support, pharmacological management, and non-pharmacological management. See Table 1 for characteristics of included studies.

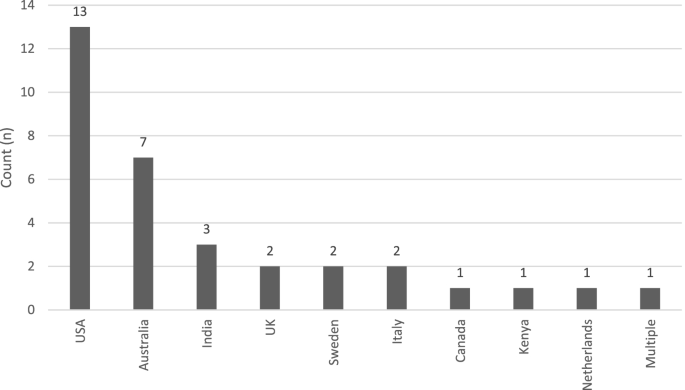

Fig. 3
figure 3

Country of study

Full size image

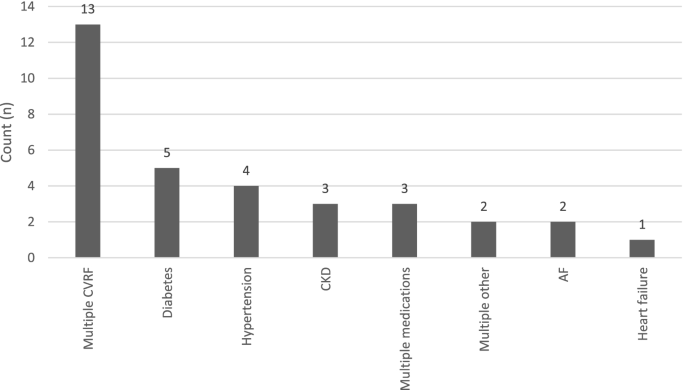

Fig. 4
figure 4

CDS disease focus. Abbreviations: CVRF—cardiovascular risk factors; CKD—chronic kidney disease; AF—atrial fibrillation

Full size image
Table 1 Characteristics of included studies
Full size table

The median number of provider participants was 19 (IQR 10 to 63); 4 studies did not state the number of participants included. Methods used for data collection included interviews (n = 11), surveys (n = 7), or more than one method (n = 14). Those using more than one data collection method mainly used surveys and interviews, or surveys and focus groups. For data analysis, 6 studies used an inductive approach to thematic analysis and 2 used deductive coding—utilising the NASSS framework [46] and Rogers’ diffusion of innovation [80]. The remaining qualitative studies used other evaluation approaches, drawing on theoretical frameworks such as the Consolidated Framework for Implementation Research (CFIR) [57], realist evaluation framework [70], Normalisation Process Theory (NPT) [85], and Centre for eHealth Research (CeHRes) Roadmap [54].

Review findings and meta-aggregation

From included articles, 177 findings were extracted on barriers and enablers to implementation and use of CDS. Out of these findings, 40 (22%) were unequivocal, 65 (37%) were credible, and 72 (41%) were not supported. For the full list of findings with illustrations, see Additional file 5. The findings were grouped into 29 categories, which were synthesised into 8 findings. Findings, categories, and synthesised findings are presented in Tables 2, 3, 4, and 5.

Table 2 Clinical barriers and enablers
Full size table
Table 3 User barriers and enablers
Full size table
Table 4 External context barriers and enablers
Full size table
Table 5 Technical barriers and enablers
Full size table

Clinical context barriers and enablers

“Clinical context” referred to clinical factors during the consultation—relating to the patient’s medical condition, patient-clinician interaction, or the clinician’s management of the patient. CDS barriers encountered during the consultation included “distorted priorities” and “blanket recommendations” that did not account for the patient’s agenda and the need to consider multiple clinical guidelines in multimorbidity presentations [74]. Enablers to CDS uptake included tools that facilitated structured chronic disease care or triggered relevant discussions during the clinical consultation. Clinicians also responded positively to CDS that facilitated their own judgment or provided a safety net to “avoid dangerous situations” [59].

Example finding 1: Distorted Priorities [74]

Illustration from interview: “One of the dangers I would see with this is the encouragement of game playing…So an electronic decision support module that is only related to cardiovascular disease…could lead you to focus on getting cholesterol and things done and perhaps forget immunisations or pap smears or the housing forms because that’s what the computer is flashing up at you.”

User barriers and enablers

“User” factors referred to the individual attributes of the provider. Barriers arose from low awareness and low familiarity with the CDS technology. Lack of trust was also a major barrier—some clinicians felt “marked down” by an external authority [46, 74]. Perceived usefulness to skill expansion and user confidence were facilitators to CDS use. Building user confidence required deliberate effort from the implementation team in providing both initial training and follow-up training or individualised support. As the research teams plays a central role in driving engagement, one study described a plateauing of CDS use post-trial [72].

Example finding 2: Confidence [75]

Illustration from interview: “First, we were afraid that there was the need to handle computers and touch screens, but later after training, we were able to understand it. After we did 1 or 2 tests, it became easy, and we can do it better now.”

External context barriers and enablers

“External context” referred to service and other macro context factors. Lack of time, interruption to workflow, and lack of resources were key barriers to CDS uptake. Time and remuneration are tightly coupled in fee-for-service settings, such as private general practice clinics. One team sought to include CDS use as a billable item number on the fee-for-service schedule in Australia but was informed that payment for CDS use was not possible from a legislative point of view [46]. Healthcare providers identified engaged clinical champions and allocated personnel to operate the CDS, including allocated technical support, as key enablers to successful implementation.

Example finding 3: Allocated person [72]

Illustration from interview: “A good single person allocated, keep monitoring, keep going, these tools will be very, very good. Yeah.”

Technical barriers and enablers

“Technical” refers to technical features that affected CDS uptake. The alert burden was a recurring theme and contributed to CDS prompts being overridden [50]. Although the CDS systems included in this study were all EHR-linked, poor integration and the need for additional manual data entry were nevertheless barriers to uptake. Useful technical functions and attractive CDS design features were enablers to uptake. Clinicians valued CDS functions that provided relevant and immediate “hands-on information” [59]. Appropriate use of colour elicited desirability and “almost an emotional response” to the CDS [72].

Example finding 4: Integration [46]

Illustration from interview: “Nothing from HealthTracker populated into the EMR; [only] the reverse occurred.”

Discussion

Main findings and recommendations

Our systematic review aimed to describe the experience of healthcare providers in implementing, using, evaluating, and sustaining CDS systems. The findings of this review predominantly outline factors influencing implementation and use, since few findings from included primary research studies addressed factors influencing the evaluation or sustainability of CDS projects. The eight synthesised findings from meta-aggregation of qualitative findings related to clinical context, user-related, external context, and technical factors that influenced CDS uptake. We found that these factors influencing CDS uptake were universal across the broad range of included CDS studies, regardless of CDS type (e.g. by disease focus), and shared across both high and lower middle-income settings. Our findings indicate that adequate attention and resourcing needs to be directed at each of these domains when undertaking a CDS project. We summarise actionable steps that can be taken to address the challenges in each of these domains in Table 6.

Table 6 Recommendations for practice and research
Full size table

In the CDS literature, external context and user factors affecting uptake have remained relatively constant over time and across heterogenous CDS implementations [18, 25, 86]. In particular, the macro external contextual “barriers of insufficiency”—lack of funding, training, and supportive policy—have changed little since barriers to health information technology was first described in the 1960s [18, 87]. Several included studies illustrate the challenge of overcoming barriers of insufficiency beyond the project implementation phase. Patel et al. highlighted the critical role of the CDS research team in driving training and user engagement—the authors noted that when this support was withdrawn post-trial, CDS-related improvements in health outcomes plateaued [72]. In Abimbola et al., the research team sought government funding to reimburse clinicians for CDS use on the national fee-for-service Medicare Benefits Schedule (Australia) but were informed that “from a legislative viewpoint, MBS items can’t be attached to software” [46]. Although there has been examples of national-level financial incentives for EHR-based CDS uptake (e.g. in the USA) [88], the lack of clear macro-level CDS reimbursement strategies continues to impede its widespread uptake into routine clinical practice [89, 90].

In contrast to external context and user factors, the clinical and technological expectations we identified in this review are specific to our highly digitised era. The “five rights” of CDS interventions include providing the right information, to the right person, in the right format, through the right channel, at the right time [4]. Providing the “right information” is increasingly hard to achieve in the face of multimorbidity—whilst single-disease digitalised guidelines may be appropriate in acute settings (e.g. stroke assessment), we found that a lack of CDS algorithm complexity frustrates clinicians and limits CDS applicability in multimorbid, chronic disease settings [28]. Clinician expectations for what constitutes right EHR information has also evolved in an age where handheld devices synchronise instantaneously to the cloud and across multiple devices, healthcare providers now expect pertinent individual EHR data to be immediately integrated within CDS systems. Today’s CDS users also expect “right format” not only in terms of correct functionality, but also in terms of desirability. Design principles suggest that attractive designs “look easier to use… whether or not they actually are easier to use” [91]—although user experience (UX) is an established sector outside of medicine, such applications of these principles to CDS research remains preliminary in nature [92, 93].

Thus, our results suggest that an ideal chronic disease CDS system would be wide rather than narrow in clinical scope to reflect the complex nature of care in multimorbidity. For example, some authors have proposed problem-orientated patient summaries with decision support as a potential way to improve CDS usability in multimorbidity settings [94, 95]. Such broad-scope CDS interventions require improved clinical collaboration beyond that of specialty or disease-specific interests [28, 96]. More work also needs to be done to develop CDS systems that are both functional and attractive. These goals are conceptually obvious but difficult to achieve in practice. For example, a patient’s data is often distributed across “archipelagos” of EHR sources, which may not adhere to interoperability standards [90]—greater collaboration between EHR vendors and developers is needed to enable a greater variety of EHR data to be extracted, which would increase CDS algorithm complexity and improve clinician workflow [95, 97, 98].

Comparison with previous studies

In terms of methodology, our review is most similar to the systematic review of CDS studies conducted by Miller et al. (year 2000 to 2013), who used an inductive approach to qualitative evidence synthesis—similar to the JBI meta-aggregation method we used. However, Miller et al. included a narrower scope than us; whereas we examined both barriers and enablers, their search strategy narrowed the article search to primary research describing barriers or problems with CDS interventions only [23]. More recently, two 2021 systematic reviews examined barriers and enablers to using CDS systems—one investigating CDS targeting medication use [24] and one focussing on alert-based CDS systems [26]. Both of these reviews synthesised qualitative findings using thematic analysis with a deductive approach, utilising the “Human, Organization, and Technology–Fit” (HOT–fit) framework [99]. Several barriers and enablers identified in our study are similar to the human, technological, and organisation factors influencing uptake described by the HOT-fit framework [86, 99, 100]. In one of these reviews, Westerbeek et al. highlighted that disease-specific factors were not adequately captured within the HOT-fit framework [24]. Likewise, we found a large number of qualitative findings relating to “clinical context” factors (e.g. distorted clinical priorities) that are not sufficiently incorporated into HOT-fit [99] and similar determinant frameworks used for health information technology interventions [25, 58, 86].

Strengths and limitations

To date, the discourse on CDS systems implementation has typically focussed on barriers to uptake. This study takes a unique approach to synthesising provider experiences, focussing not only on deficits but also on potential solutions to improving CDS interventions [101]—specifically, our meta-aggregation process extracted and synthesised findings on healthcare provider perspectives of CDS enablers and presented them as actionable steps for practice. Another strength of our review was the breadth of primary research articles included to capture the experience of CDS interventions across different settings and clinical specialties. We utilised a broad search strategy for EHR-based CDS systems, across high- and lower middle-income countries, and across various non-acute clinical settings. To incorporate the spectrum of experience across both early and established CDS systems, we included qualitative research and “other evaluation” studies with qualitative findings. Even though studies in the other evaluation category tended to have limited methodological rigour, we included them to improve generalisability of our findings. We note that other evaluation studies with qualitative findings are often conducted as early precursors of formal qualitative studies, or are sometimes the only evaluations that took place if projects lacked sufficient sustainability to undertake formal qualitative evaluations.

There are several limitations to our review methodology. Whilst we employed a comprehensive search strategy across several databases, we did not include grey literature. Furthermore, non-research articles such as perspective pieces and systematic reviews were not included as the focus was on synthesis of primary research article findings. Common, related cardiometabolic chronic diseases with similar modifiable risk factors were included in this review—however, other chronic diseases such as COPD or chronic pain were not included. Healthcare providers are the primary targets of EHR-based CDS and thus were included as the population of interest in this study. However, multiple perspectives, including patient, EHR vendor, CDS developer, and other collaborator perspectives are also of interest in fully understanding the barriers and facilitators to CDS success [102, 103].

JBI methodology to meta-aggregation is one of many forms of qualitative research synthesis, and debates over the preferred systematic review synthesis methodology continue [34, 104]. Consistent with pragmatism, knowledge from meta-aggregation do not indicate hypothetical explanation [105] and some critics note a lack of re-interpretation and generation of theoretical understandings with this approach. We recognise the important contributions of theory and frameworks in the field of implementation research, which facilitates the systematic uptake of effective health technologies into routine clinical contexts [86, 106,107,108]. Diverse theoretical lenses have been used in describing CDS uptake [47, 100, 109, 110], and we provide a comprehensive description of theoretical frameworks used to guide qualitative data analysis within the primary research articles included in our review (e.g. NASSS framework, CFIR framework). However, because meta-aggregation is descriptive rather than interpretive, a limitation of this synthesis method is that it does not further develop existing theoretical frameworks. The merits of alternative qualitative synthesis approaches over meta-aggregation lie in their ability to contribute to mid-level theory—such alternative synthesis methods include meta-ethnography, or deductive thematic analysis using an existing implementation science framework. Nevertheless, meta-aggregation was selected as the most appropriate synthesis method for our review given the limited availability of “thick” and “rich” qualitative data [36, 37] in the CDS field. We also selected meta-aggregation because it is a structured and transparent method to synthesise findings into concrete statements (practice-level theory) that is practical and accessible to healthcare providers at the coalface of CDS implementation [42, 111].

Conclusion

Qualitative findings of barriers and enablers to CDS uptake provide valuable insights into why some projects are successfully implemented, whereas others fail to achieve uptake. Our systematic review summarises provider experiences in implementing and using chronic disease CDS systems across a broad range of studies. Our findings identified clinical context, user, external context, and technological factors affecting uptake. The meta-aggregated findings and summary of recommendations provide an evidence-base for designing, implementing, and sustaining future CDS systems.

Availability of data and materials

The data supporting the findings of this study are available within the article and Supplementary Information.
